Would like to purchase screen for sliding door

by Angela
(Burnaby, BC)

Hello,

I would like to purchase one of your kits. I looked at your measuring guide but unfortunately I can’t figure out how to use it. I hope you’re able to assist me on how to measure properly. Once that is established how much it would cost? I will include some pics. I believe it would go on the outside.

Thank you so much,
Angela

No problem, thanks for the great pics !

The width of your new screen door is exactly the same as the width of the sliding glass door panel that moves.

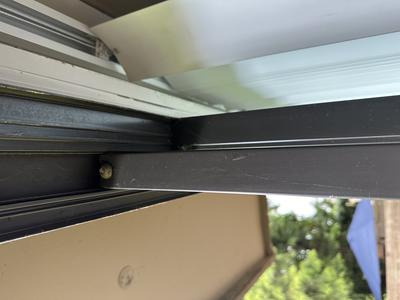

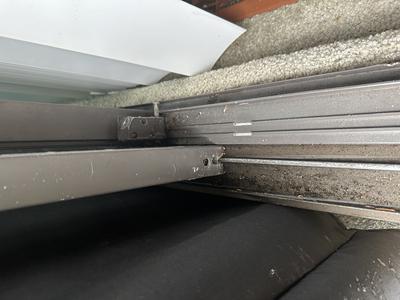

You can see two rails one used by the sliding door and the outermost rail used by the screen door

At the top of your patio door you have a channel that the screen door fits into, but that channel also has a rail in the middle

Measure from the top of the bottom screen door rail up to the bottom of that small rail in the middle of the channel

That measurement is the actual height of the new screen door

Your door is a top channel to bottom track type but im taking account of the track inside the top channel to make sure the door fits

Hope this makes sense
