Viceroy patio door handles and locks

by Chris E
(Ottawa, Ontario, Canada)

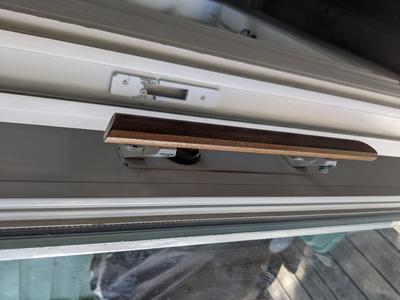

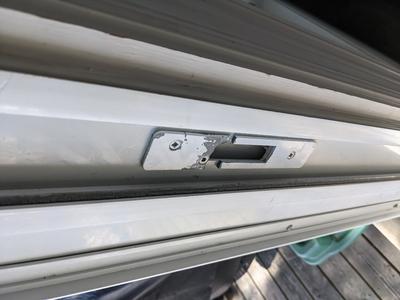

Viceroy Patio door handle and lock need replacing. Looking for two or three sets. I am unable to find these anywhere. Looking for a solution. Please and thank you. I've included some pictures.

Comments for Viceroy patio door handles and locks

Average Rating starstarstarstarstar

Click here to add your own comments

Oct 30, 2021
Viceroy patio door
by: Dan

Hello Chris
I was wondering what the outcome was?
Did you purchase the locks which were recommended and did they work?
I too am in need of one of these lock sets and any info you may have regarding them would be greatly appreciated

Jun 04, 2021

by: Adrian

Hi Chris;

A few patio door makers have adapted Adams-Rite commercial deadbolts to work with their sliding doors.

On yours Viceroy used a Slide-Co or Prime-Line handle and an Adams Rite sliding door lock

I think this is very similar to the lock used:

Pacific Doorware Adams Rite Style Door Lock Mortise Hook Deadbolt & Cylinder Combo, Adams Rite Cam, in Duronotic (1-1/8" Backset) by Pacific Doorware for $49.99

Would need to see the door lock taken apart to be absolutely sure

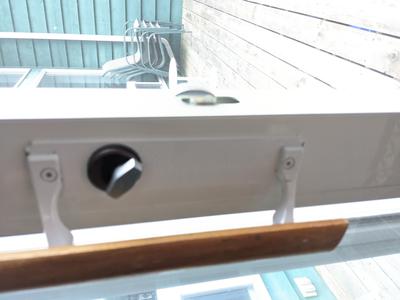

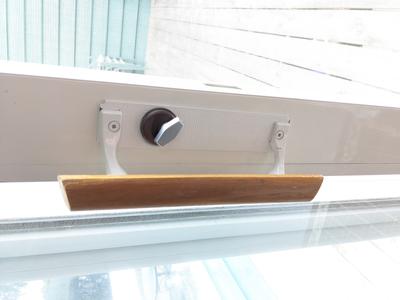

The flat aluminum plate on which the thumbturn is mounted looks like a custom made part.

Normally the locks are screwed in to the leading edge of the door but I dont see any screws on yours

That makes me think they bolted the lock to the aluminum plate

I dont carry these locks but it might be a good idea to check with a locksmith in Ottawa to get an estimate for replacement
