Does this need T spline ?

by Annette
(Cumbola,Pa. USA)

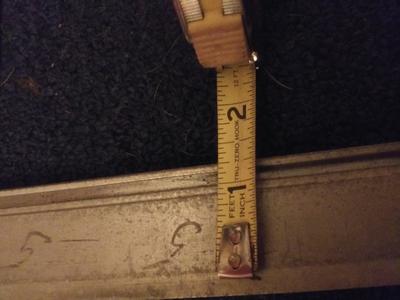

I have changed out window screens in the past but, this one is giving me a very tough time! I was unaware that there was a 'flat' spline... Is that what I need here? Because it's really hard to push round 0.220 into this space,although opening measures 3/16.. damaged the screen twice now..stopped...found you and am hoping you have the answer for me!! Thank you in advance!

Comments for Does this need T spline ?

Average Rating starstarstarstarstar

Click here to add your own comments

Feb 02, 2020
Rating
starstarstarstarstar

by: Adrian

That channel looks like it was made for a big T spline

0.225" T spline is the biggest I have. The flat part of the T measures 0.225" across and would sit inside the channel holding the cloth in very tightly

The vertical leg of the T would stick up out of the middle of the channel and it stops your screen roller from coming into contact with the cloth and ripping it
