Bug Strip Metric Dimensions

by KR

Bugstrip

Bugstrip

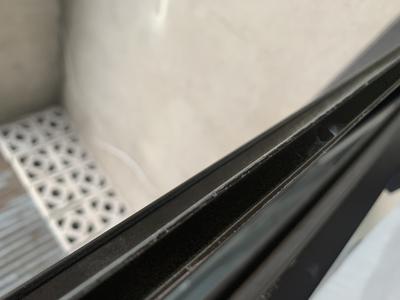

Hi I have a patio door screen that needs a bug strip…
I measured the inside slot around the screen. It’s 7.3mm
Will your bug strip fit?

Thx

Comments for Bug Strip Metric Dimensions

Average Rating starstarstarstarstar

Click here to add your own comments

Oct 02, 2022
Rating
starstarstarstarstar 		Thx NEW
by: Anonymous

Ok thx
Oct 02, 2022
Rating
starstarstarstarstar
by: Adrian

I uploaded pictures showing the metric measurements of the bugstrip.

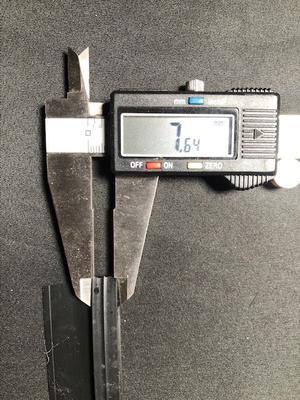

It will fit inside a groove measuring 7.3 mm, the actual size of the bugstrip is 7.6mm or a little more than 1/4 inch but it does compress to make a snug fit.

The overall thickness is 4.97mm which is a little less than 1/4 inch. There are tiny flaps on the bugstrip that snap over ridges on the inside edges of the screen door extrusion.

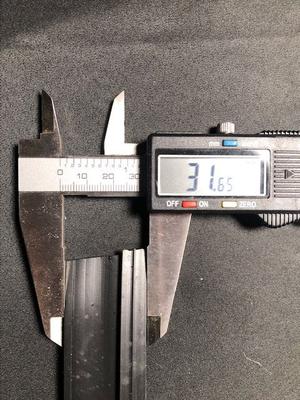

Overall width of the bugstrip is 31.6 mm or about 1-1/4 inches. This can be trimmed down if it rubs on the glass and affects the opening and closing of the door.
