Patio door handles

Patio door handles come in a wide variety of shapes and sizes but fortunately the mounting dimensions are the same among many different kinds of locks.

This means you can often replace a handle with one that may look different but has the same screw mounting pattern. So long as the handle does not interfere with other parts of the door, you can use it.

Manufacturers have made "universal" types of patio door handles which replace all sorts of old handles and locks. But you still need to figure out which type of universal handle you may need.

Surface mount patio door handles

Surface mount lock and handle for sliding patio door

Surface mount locks typically are screwed onto the face of the patio slider frame. The lock is built into the handle. The picture above shows a Fasco 070001 model lock. There are some versions with the same handle on both sides.

These are the easiest to replace because most of the time you just have to pull out 2 screws, remove the old handleset and bolt on a new one. The bolts or screws that hold the locks on are often 6-5/8" or 168mm apart.

So any handle the has that hole spacing will bolt right on. Even if the spacing is different, you usually only have to drill one new hole in the door and at worst fill one of the old screw holes.

For more information on these type of sliding glass door hardware click on the picture above or go to my surface mount locks page.


If you have a dimension other than 6-5/8", you still might be able to find another lock but it may not be worth getting an exact replacement.

If no one stocks the lock with the dimensions you have, consider drilling new holes and putting on an easily available 6-5/8" lock.

This is easy when its a wooden patio panel but you may need to get creative to hide the old mounting holes in an aluminum or vinyl patio slider.

One way to cover the old hole is to use "Bondo" or automotive body filler. Another way is to make a thin flat plate from white aluminum sheet stock. Then use the sheet in between the lock handle and the door to hide any old holes.

Mortise lock handle sets

Typical mortise lock on a sliding patio door

Mortise lock style handles are by far the most popular in aluminum doors these days. The mortise lock fits right into the frame of the door and then the the inside and outside handles are separate with one or more screws going right through the inside handle, into the lock and then into the handle on the outside.

On a wooden or PVC plastic patio panel the same mortise locks are used but a metal bracket is also required because the wood or plastic is often too soft to hold screws securely.  These brackets are called escutcheon plates.

Click here for a page showing all the popular types of mortise locks.

For the inside and outside handles that work with these mortise locks check this page.

Before you remove the broken mortise lock you need to take verify a few quick measurements so you can source the proper lock.

  • 1. Width of the lock.
  • 2. End Face Plate type(round or square).
  • 3. Screw Hole Size The distance between the centers of the mounting screw. (Usually 3-15/16")

Flush mount sliding glass door hardware

Inset style clamshell patio door lock used by hundreds of patio door manufacturers

Inset style "clamshell" locksets are really popular in aluminum sliding doors. With this type of lock the lock and the inside handle are combined into one unit. The outside handle sometimes comes with a locking key cylinder mounted on it.

A tall rectangular hole is cut right through the patio door and each half of the inset lock goes together so the patio door is sandwiched in the middle.

My page on inset style locksets goes into more detail with information about the different styles and accessories that go along with these locks.

Multipoint lock handles

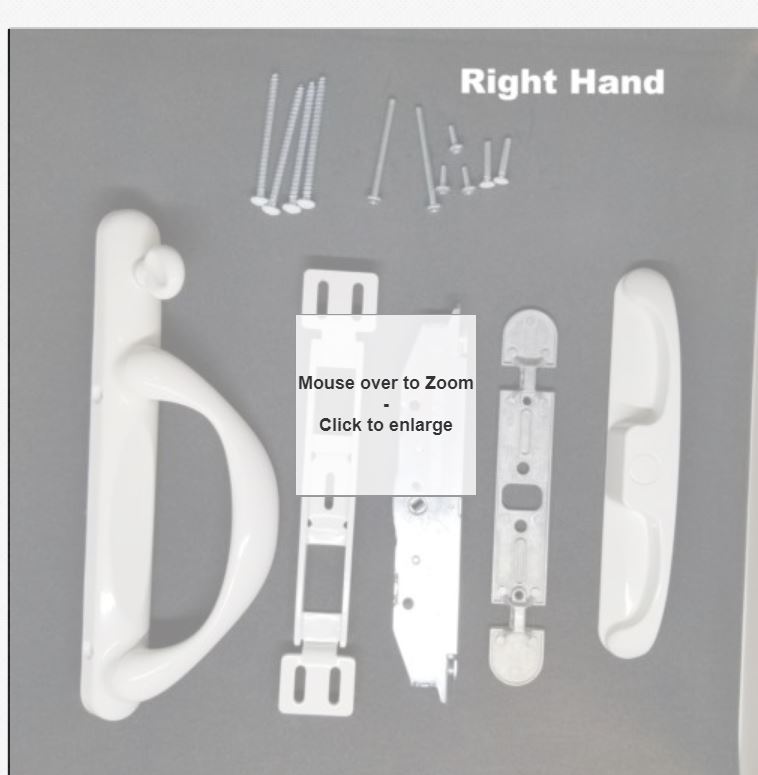

Vanguard right hand patio door handle

The majority of inquiries i get for multipoint lock handles are for the Vanguard left and right handlesets used in California and the west coast of the USA. Vanguard is just one company that uses them. You can find more information on my multipoint lock page here

Acorn one piece patio door handles

Acorn patio door handle replacement

One piece patio door handles and locks made by Acorn windows USA were used a lot in the 1960's. You still see them despite the fact that the company is long since out of business. In these sets the handle and the lock are all one piece. Check out my Acorn handles page here.

I also include Arcadia Series 600, 700 and 800 patio doors here as well, even though they are not the same components as Acorn locks they both share the same small rectangular hole in the vertical stile of the door for the hasp and latch.

Other patio door parts

In addition to patio door handles there are other bits and pieces that often need replacing on patio doors.

The fix clips that hold the panels in place often get broken or get lost.

You also might want to add or replace a keylock on the outside so you can open your patio door with a door key.


My page on patio door hardware lists some of the other types of slidign glass door parts available




If you are not sure a universal handle will fit your door, take a picture of the handle and lock with your digital camera, and submit it in the form down below.

This can be really helpful when trying to communicate which kind of lock you are looking for help with.


Not only that, others will be able to see your pictures and be get help for their own lock and handle repair problems.

Holes for patio door handles
are on the wrong side

by Jamie

Chicago, Illinois

Hey Screen King - I thought you might have some thoughts on this one. While prepping my screen door, I drilled the holes for the handle on the wrong side (my mistake for listening to a friend who didn't realize how the door was going to go).

Anyway, Anderson says they don't have a blank beauty plate (which i was going to use to hide the holes drilled on the wrong side).

Thoughts on a solution? My thoughts were:

1) Use a blank beauty plate BUT don't know where i can buy one

OR

2) Fill in the whole and paint over (i'm not sure what to use for fill nor do I trust that the paint will match.

Any suggestions would be greatly appreciated!

Thanks Screen King!

jamie

Hi Jamie,

I would cover the holes up with another handle. Alternatively you could purchase a roll of Aluminum from Lowes or Home Depot and cut a white rectangle to cover the holes. Just glue it on.

Handles for patio door mortise lock

I need locking inside and outside handles to fit the mechanism shown attached. Can I find these at a lumber yard? Do you have them to sell?

Hi Roy;

I uploaded a picture of a handle assembly for this sliding patio door mortise lock, the handle in the picture comes with a keyed lock and is available without the lock.

Price is $32.00 for the unkeyed handle. Delivery time 2-3 weeks.

Let me know if you need one and I will send PayPal invoice.

Flush mount handle for
inside patio doors?

by Pales

Lincoln, NE, USA

I would like to install inside-mount Roman shades over my double patio doors. However, the handle on the inside lock projects several inches and towards the middle of the doors. The shades will not lay flat against the doors and are crooked because the handle sticks out so far. Do you have a flush-mount, or very low profile handle for interior use (perhaps similar to the typical outside handle for a screen or patio slider that still has a locking mechanism?

The shades cannot be installed on the outside of the doors but must be installed inside-mount. Even if they could be installed on the outside of the trim, the handle still projects beyond the trim and the shades would not lay flat installed that way either. The current handle cannot be turned around to face the other direction towards the trim because then your hand cannot fit between the trim and the handle to open the door.

Thanks for your help.

If you have any pictures of the existing lock, that would help a lot.

There are flush mount handles, but mounting them depends on the type of panel you have.

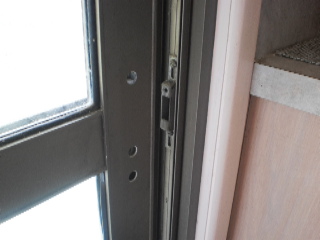

Patio door handles gone missing

by Robert M.

(Brisbane, Australia)

Hello screen king,

I am looking for a patio door handles for a patio slider that mates with the lock E2012 image from your site.would you have one to match the color of my patio panels.

Both the C1128 and the C1019 will work with E2012 mortise lock. You can find pictures on the patio handles page.

Vinyl sliding patio door
handles are hard to find

by Frank

(Wilmington NC)

2 months of aggravation and wasted money. No one at Home Depot or Lowes know anything about handles or door locks. Just look at the re-taped Wright hardware on their shelves and you will see how many other people put stock into the knowledge they do not have, me included.

Now I have the (finally) 3 and 15/16 mortise but need the door handles. They were originally white, and broke. They had an exterior key lock, and inside latch to lock the door. If anyone knows who sells the product please let me know. Would like to also change the rollers, but cant get the door oout of the track.

I could live with that but the patio door handles are driving me nuts and cuckoo.

Thanks Frank

Hi Frank; Give me a call at 1-866-904-2383, I have handles and I am sure we can get the proper handle set for your lock.


Sourcing Patio Door Lock Replacement

by Bill

My sliding glass patio door, installed 20+ years ago, is in need of a replacement door lock. I have been unsuccessful in finding any marking on the door that might identify the manufacturer.

Looking at the locks that you list, it appears that my lock may be of the Long Flange variety, but the dimension are not exactly the same. The size of the flange in the mortice is 6.06" long and 0.75" wide.

The spacing of the the two mounting screws is 4.56". I have attached a couple of pictures. Do you think that you can identify the correct replacement?

Thanks for your assistance.

Need patio door handles
for sliding glass panel

By Mark

San Antonio, Texas

My renter drilled through the mortise lock on the sliding doors of my house. I have replaced it but now i need a new patio door handles set.The holes are 3 and 15/16 on center with latch type hook that moves up. The problem is I have purchased two patio door handles from home depot and the screws are too long and bind before it gets tight.

Its as if the slider panel is too thin for the length of screw. What do I do? I have already spent at least 50 bucks in parts and gas. The manufacturer appears to be Guardian from Corsicana, Texas.

I am trying to not order more handles online without knowing if they will work.

Thanks for your help.

Mark K.

Hi Mark;

Sorry to hear about your troubles.

It sounds to me that you only need to shorten the mounting screws for the patio door handles you have already purchased.

Even if the original supplier of the sold you a new handle. I would bet the screws would be still too long. Most window manufacturers do not make their own handles. They buy in from a company that specializes in just handles.

I would just clamp the end of the screw in a vise and cut 1/4" off the length at a time until I got the length right.

You can usually estimate how much to cut off by installing the screw until it bottoms out, then hold the handle set in position and measure how much the head of the screw sticks out from the the handle or housing.

You can cut the screw with a hacksaw and then use a file to smooth out the rough cut edges. That will make the the screw engage more easily.

Do not cut the screw with wire cutters, it might work but the threads will get damaged.

You might also be able to find pre-made screws at Lowes or Home Depot. They are usually available in 1/4" steps.

When I am doing repair I keep a supply of different length screws because the problem you describe is pretty common. Even with a whole case of them, I still find that there are sizes that I dont have !

With storm doors they even supply screws that are designed to break off every 1/4" with pliers. You might even be able to find those screws at the hardware store too. Just make sure you get the same head style and thread as what you already have.

Homeowner looking for patio door handles

by Randy

(Bidwell, Ohio, USA)

I am looking for a replacement handle for my patio sliding glass, the one pictured on your site looks like it matches it exactly, but I can't find the order information for it. I will attach the photo of the one like mine, if it is available for ordering please let me know. If it is not available from you directly and you know where I might get one please let me know that also. Thank You!!

45 Degree Keyway

by Dana

(Beaumont, TX)

I have the inside locking handle and the mortise lock 3-11/16 is still in place, but the outside pull with the key cylinder was damaged during a previous hurricane. does any key cylinder work with a 45 degree keyway on the lock?

HI Dana;

Once the is in the lock the cylinder will spin 360 degrees, it does not matter if the keyway is 45 degrees or 90 degrees. The mortise lock itself is the only thing that stops the lock cylinder turning.

Its not too sophisticated, its designed to work with just about any style of mortise lock so long as the shaft sticking out the back of the lock fits in the mortise lock keyway.

Outside patio slider handle lock

by Simeon

(England)

Keyed exterior patio door handl

Are there patio door handles that open from the outside?! its seems like no one has ever thought of this before. am i mad to want one?!

And if they dont exist is there a way to leave the main lock open but attach at secondary lock that i can lock from the outside and take the shot cut into town from my back garden?

many thanks

Hi Simeon;

Yes many patio slider locks can be fitted with a key cylinder so they can be opened and closed from the outside. In many models, the handle assembly is made so that all that is necessary is to punch out a small disc and then install the proper lock cylinder.

To find a handle set with lock that fits your slider, I would need some pictures of your lock to see if a key cylinder could be added or if a new handle set would be required
